Deye 50kW All In One High Voltage System IP55

Deye 50kW All In One High Voltage System IP55

More information

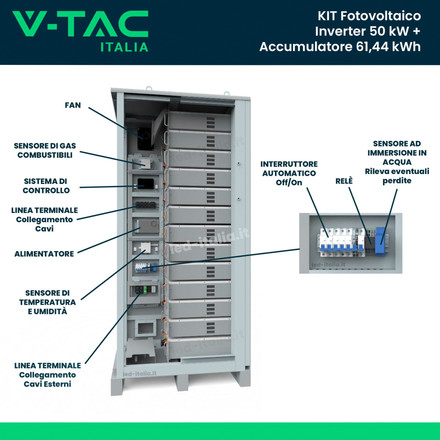

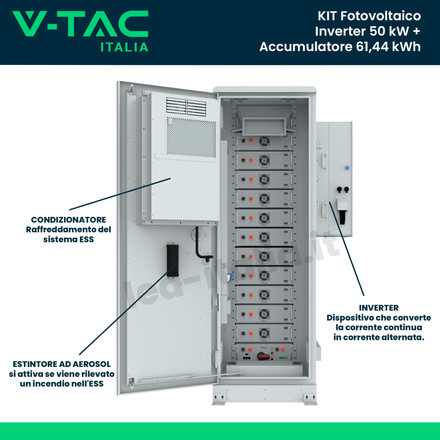

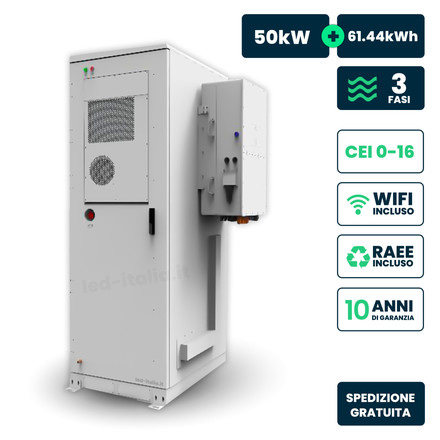

The flagship photovoltaic set consisting of the GE-F60 50 kW hybrid inverter and the 60 kW battery system , designed for efficiency and reliability. This all-in-one  three-phase high voltage solution is perfect for those who want advanced solar energy management with simplified installation.

Key Features
• Nominal Power : The system offers a nominal output power of 50 kW, with a total energy configuration of 61.4 kWh, ideal for large-scale residential and commercial applications .
• High Capacity Inverter : The hybrid inverter can handle a maximum input power of 65 kW from the photovoltaic panels, ensuring maximum efficiency and flexibility in configuring your solar system.

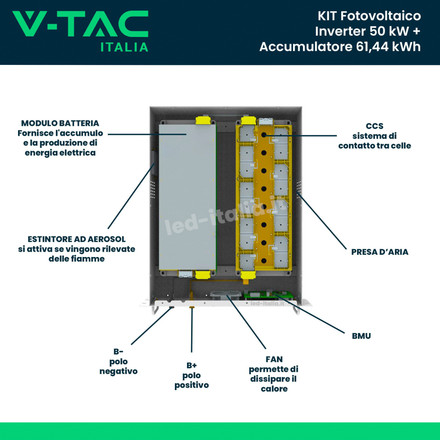

• High Voltage Battery : The system is equipped with a battery with a capacity of 5.12 kWh per unit, with an operating voltage between 500 and 700V, ensuring a stable and continuous energy reserve.
• Voltage and Current : The system's AC output supports a voltage of 220/380V and 230/400V at 50/60Hz, with a nominal output current of 75.8A. The inverter supports a maximum PV input current of 36A per channel.
• MPPT Efficiency : Thanks to the MPPT voltage range between 150 and 850V, the inverter optimizes solar energy collection to maximize energy yield.
• Protection and Resistance : With an IP55 protection rating, the system is resistant to dust and splashes of water, making it suitable for installations in outdoor environments or exposed to variable weather conditions.

Technical specifications

SKU22023

Brand nameV-TAC

Warranty10 years

Degree of ProtectionIP55

Maximum AC power50kW

ProducerDay

Electric systemThree-phase

Maximum input power65kW

Minimum operating voltage600V

Charging strategy for lithium ion batterySelf-adaptation to BMS

Packaging

EAN3800170220768

Can be ordered in multiples of1 pc

Unit of measurepcs
