60KW On Grid Solar Inverter Three Phase With Wifi Dongle

60KW On Grid Solar Inverter Three Phase With Wifi Dongleж

More information

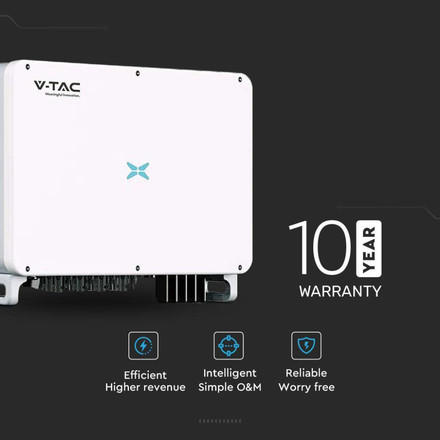

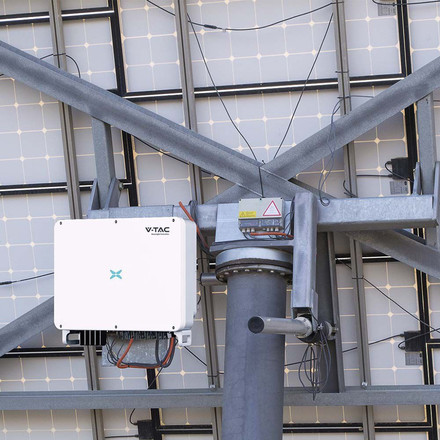

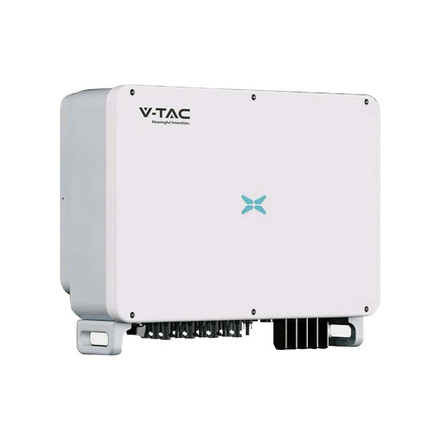

The Network Inverter (On-Grid) V-TAC SKU 11631, Three-phase 60kW with 4 MPPT , is an electronic device that allows you to convert the direct current supplied by photovoltaic solar panels into alternating current, with three-phase output suitable for the consumption of condominiums, commercial or industrial premises.

It is equipped with an LED indicator that signals the operating status of the inverter: on, off or error. Heat dissipation occurs via radiators, thus ensuring low noise. Equipped with charge/discharge protection.
The protection degree is IP65, so it can also be used for outdoor use , even under prolonged rain.

The warranty on this inverter model is 10 years .
The product is certified with the declaration of conformity to the CEI 0-21 standard .

This inverter is mains, it only works when connected to the electricity grid : it is NOT compatible with storage batteries, such as hybrid inverters .

App for Remote Control

Thanks to the WiFi module that can be purchased separately ( SKU 11528 ), it is possible to monitor the photovoltaic system and control consumption remotely , via the Apps:

• SOLARMAN Smart (Download: iOS / Android / Web App ), for private and domestic use;
• SOLARMAN Business (Download: iOS / Android / Web App ), for corporate use, with the possibility of having a centralized view of all the systems created and issuing authorizations to the end user for access to the system.
  Once logged in, to add one or more systems follow the guided procedure for initializing a new system, press + button.

Technical specifications

SKU11631

Family CodeVT-61060

Brand nameV-CT

Warranty10 years

Degree of ProtectionIP66

Dimension650x440x260mm

Maximum AC power60kW

Operating Temperature-25°C to +60°C

Electric systemThree-phase

Inverter output230V-400V, 3L+N+PE

Maximum input power96kW

Maximum input voltage1100V

Minimum operating voltage180V

MPPT voltage range200V-1000V

Number of MPPT trackers4

Maximum current for MPPT39A

Maximum output current96.6A

Network frequency50Hz / 60Hz

Power factor0.8 leading~0.8 lagging

THDi<3%

Maximum efficiency98.6%

MPPT efficiency99.9%

CommunicationRS485 / USB

Cooling downActive

Maximum operating altitude4000m

Relative humidity0-100%

Night-time energy consumption<1W

Strings for MPPT3

Starting voltage250V

Packaging

EAN3800170200159

Can be ordered in multiples of1 pc

Unit of measurepcs
