5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC EU Specification Warranty 5+5YRS Optional

11743
Brand: V-TAC
5 year
Price
6 257,09 лв.
(5 214,24 лв. + VAT)
Wholesale prices
Add to wish list Add to comparison list

Features

Приоритетни

Brand:
V-TAC
Warranty:
5 year
IP Rating:
IP 65
with Sensor:
No
Working conditions:
-40°C to +60°C

Description

5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC EU Specification Warranty 5+5YRS Optional

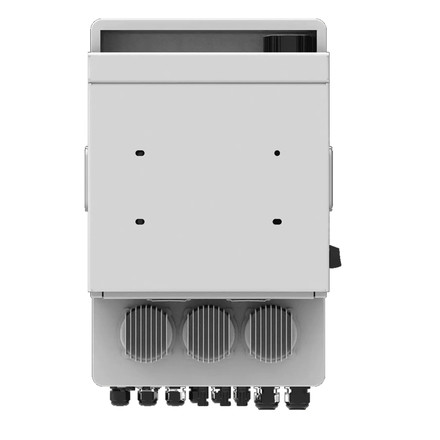

The V-TAC SKU 11743 Hybrid Inverter , Three-Phase 5kW Double MPPT , is an electronic device that converts the direct current supplied by the photovoltaic solar panels into alternating current, with a three-phase output suitable for the consumption of condominiums, commercial or industrial premises. This inverter has the built-in Smart Meter for current measurement: it does not need an additional Smart Meter.
It is supplied complete with accessories : Current Transformer (CT), 3 pairs of MC4 Solar Connectors, RJ45 cable and WiFi Dongle for remote monitoring.
Comes complete with accessories: Current Transformer (CT), 2 pairs of MC4 Solar Connectors, RJ45 Cable and WiFi Module for remote monitoring.

It is equipped with a color LCD Touch Screen that allows you to interact with the settings. Integrated Zero Emission function Heat dissipation takes place via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used for outdoor use , even under prolonged rain.

The warranty on this inverter model is 5 years, which can be extended up to a 10-year warranty .
Contact us to apply the warranty extension.
The product is certified with the declaration of conformity to the CEI 0-21 standard . This inverter is referred to as a hybrid as it can operate with or without batteries .

Remote Control App

Thanks to the WiFi module included, it is possible to monitor the photovoltaic system and control consumption remotely , via the Apps:

  • SOLARMAN Smart (Download: iOS / Android / Web App ), for private and domestic use;
  • SOLARMAN Business (Download: iOS / Android / Web App ), for Corporate Use, with the possibility of having a centralized view of all the systems created and issuing the authorizations for accessing the system to the end user.
    Once logged in, to add one or more systems, follow the guided procedure for initializing a new system, key +.
