4.92kW Mono Solar Panel Set Black Frame (12x410W 35MM )
More information

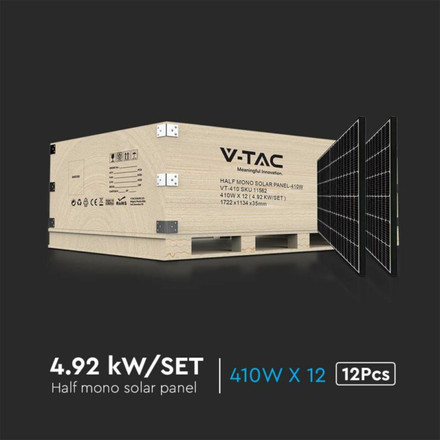

V-TAC SKU 11562 is a 5kW (4.92kW) photovoltaic set containing 12 monocrystalline photovoltaic modules with a power of 410W and dimensions of 1722*1134*35mm . The nominal power per surface is 210W/m² .
This model has a black frame , therefore with a greater aesthetic result and can be used where any landscape constraints are imposed .

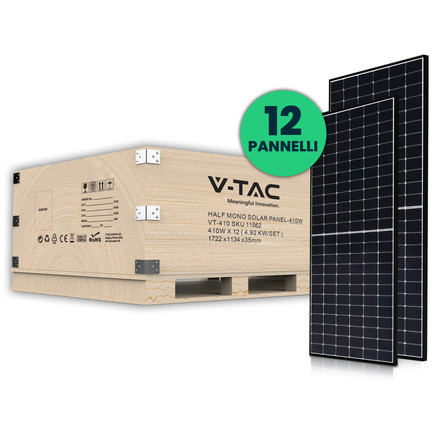

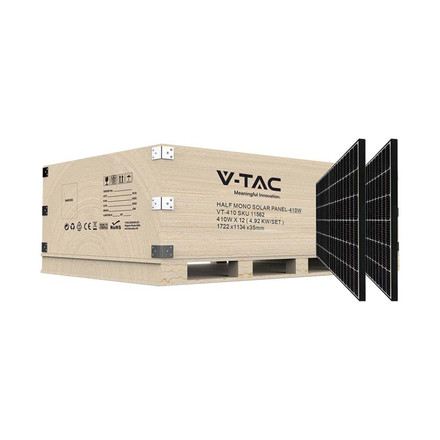

The set is packaged in a wooden crate closed on all sides and therefore represents an excellent solution for transporting photovoltaic solar panels to the construction site .

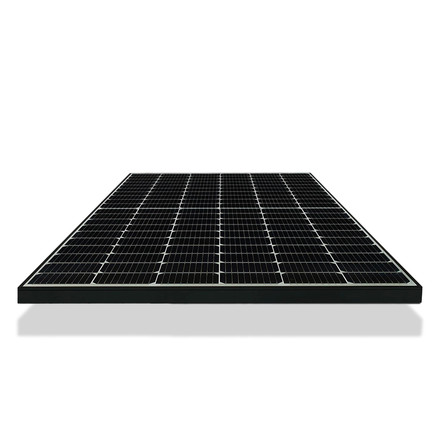

Inside each photovoltaic solar panel there are photovoltaic cells capable of transforming solar energy into electricity, thanks to the photovoltaic effect . These modules are made with innovative half cells . Each cell is 182x91mm in size and is equipped with 10 busbars . On each module there are 108 cells arranged in an 18x6 matrix. The cells are made with the highest performing German technology, even in low light conditions, with a heat self-reduction system that prevents energy loss.
The thermal coefficient of the photovoltaic module is -0.35%/°C , compared to a temperature of 25°C. This means that if the photovoltaic panel works for example at 35°C, the yield loss in terms of power will be equal to 3.5%. Tüv NORD
certified . IP67/IP68 junction box with 3 diodes, 2 output cables 1 meter long (100cm) 4mm² with MC4 connector, anodized aluminum frame, Wind/Snow : 2400Pa/5400Pa. Module efficiency equal to 20.97%. 25 year guarantee on 85% manufacturability, linear efficiency.
The photovoltaic modules can be connected in series (the voltage is added) or in parallel (the current is added), based on the needs and maximum values sustainable by the MPPT charge controller : see maximum input voltage and current for each MPPT, reported on the technical sheet of the hybrid or grid photovoltaic inverter .
